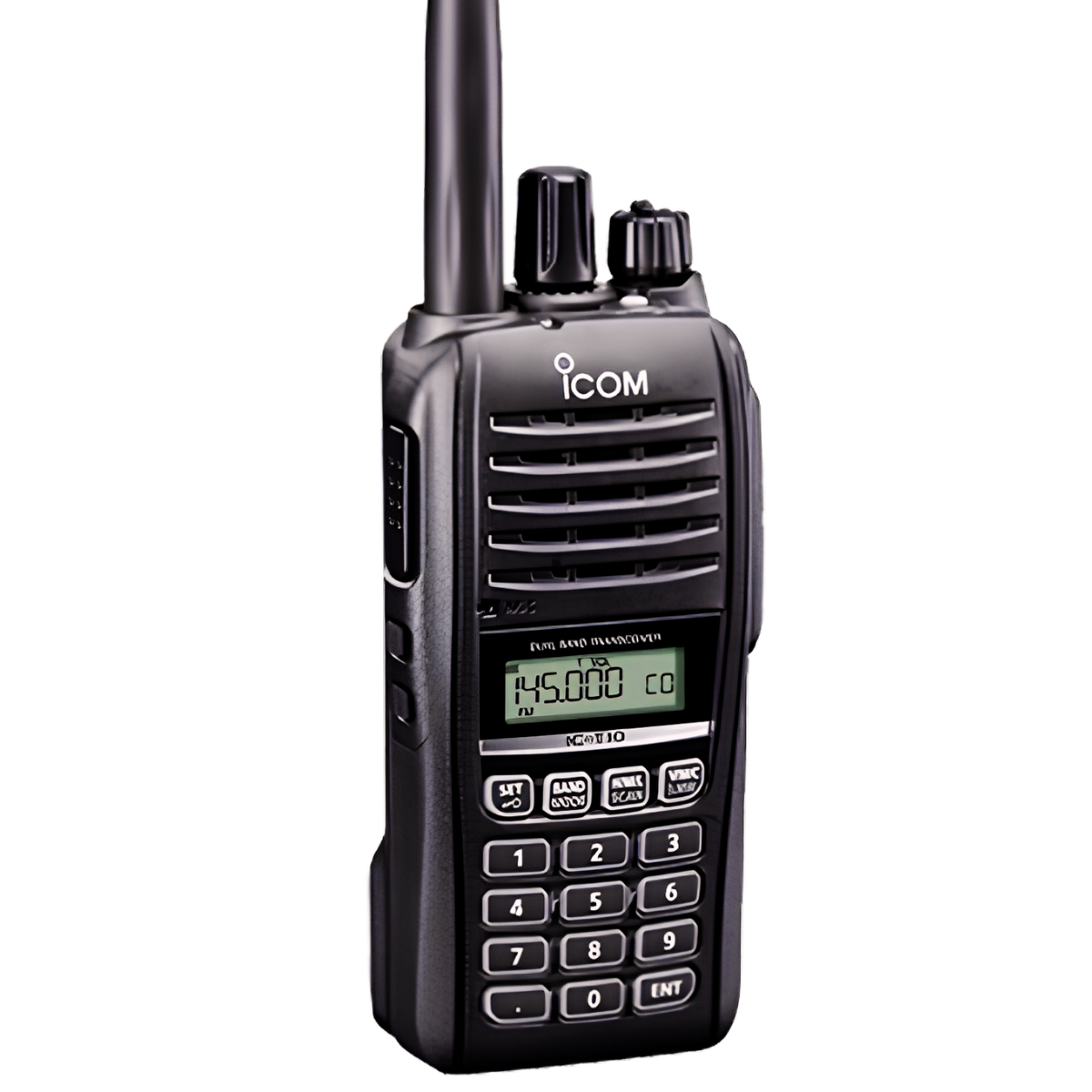

Icom IC-T10

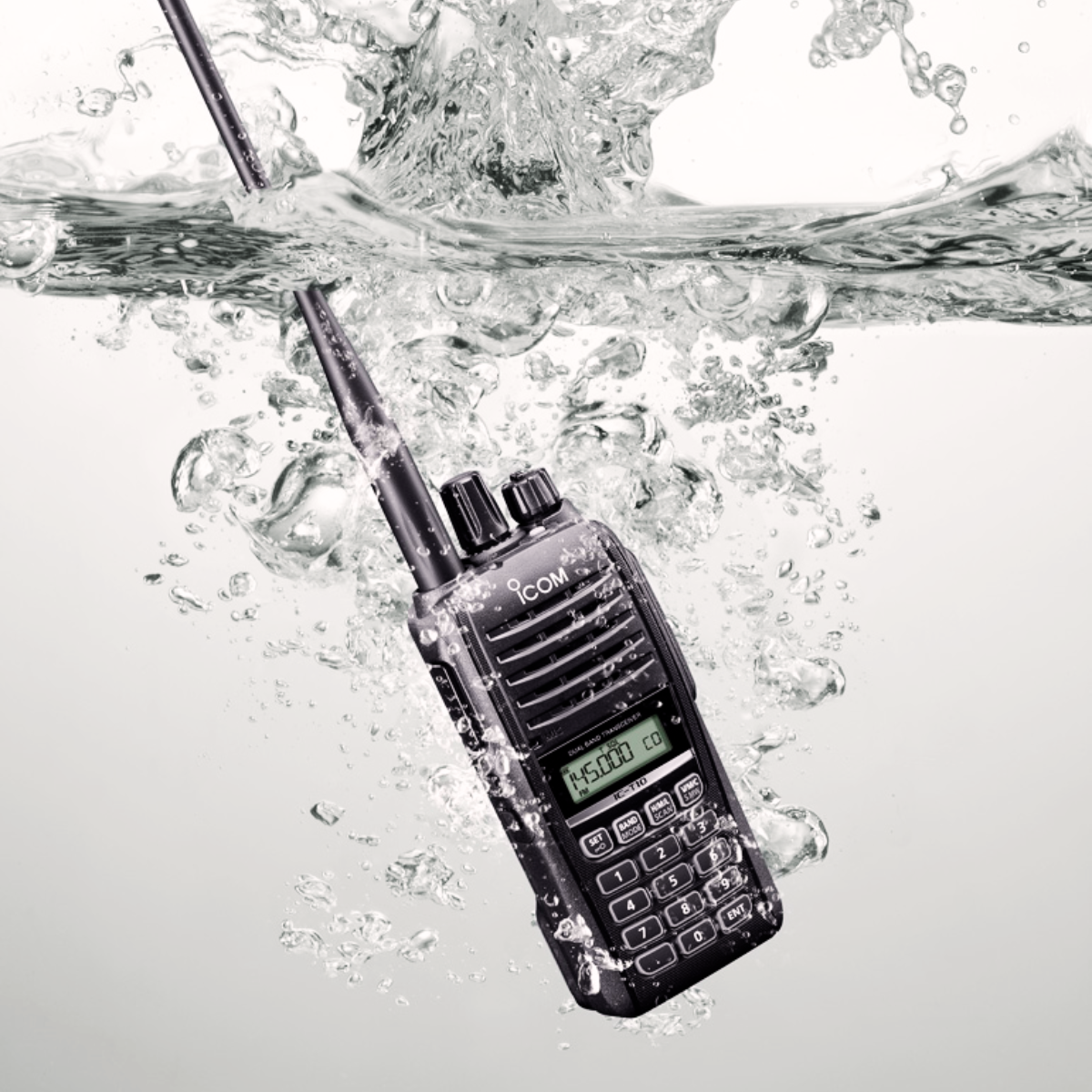

Rugged, Compact Dual Bander with Simple Operation and Great Performance Designed with a high waterproof rating, the IC-T10 is a simple yet powerful dual-band handheld. It is ready for whatever field activities lie ahead. Clearly hear any transmission from other hams or the FM radio receiver with the loud 1500 mW speaker.

Highlights

Documents

BROCHURE_ICOM_IC-T10.pdf

We Offer Shipping Services

Store pickup available

3 Months Warranty

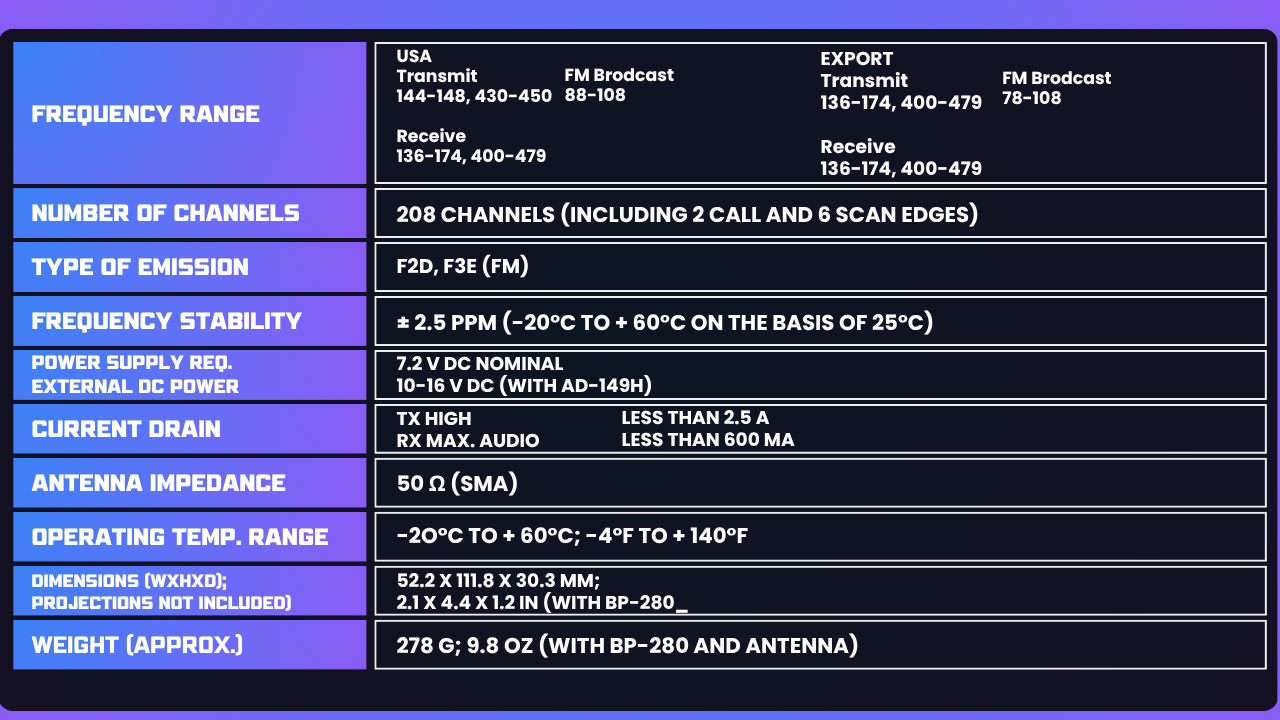

Technical Specifications

Complete technical details for the Icom T10

Scroll for more

Brand

Icom

Model Type

Handheld Radios

Product Category

Handheld Radios

Frequency Range

USA Transmit 144-148, 430-450 Receive 136-174, 400-479 FM Brodcast 88-108 | EXPORT Transmit 136-174, 400-479 Receive 136-174, 400-479 FM Brodcast 78-108

Number of Channels

208 CHANNELS (INCLUDING 2 CALL AND 6 SCAN EDGES)

Type of Emission

F2D, F3E (FM)

Frequency Stability

± 2.5 PPM (-20°C TO + 60°C ON THE BASIS OF 25°C)

Power Supply Req. External DC Power

7.2 V DC NOMINAL 10-16 V DC (WITH AD-149H)

Current Drain

TX HIGH, RX MAX. AUDIO, LESS THAN 2.5 A, LESS THAN 600 MA

Antenna Impedance

50 Ω (SMA)

Operating Temp. Range

-2O°C TO + 60°C; -4°F TO + 140°F

Dimensions (WxHXD); Projections not Included))

52.2 X 111.8 X 30.3 MM; 2.1 X 4.4 X 1.2 IN (WITH BP-280)

Weight (APPROX.)

278 G; 9.8 OZ (WITH BP-280 AND ANTENNA)
